450/750V Single Core Flexible Electrical Cable PVC Insulated Sheathed Solid Copper Electric Building Wire
H07V-U,450/750V Copper Conductor PVC Insulated Wire) meets or exceeds the requirements of all international
standards like CCC,IEC,etc. in addition, we also accept OEM service to meet your special request.
1. Standard
EN 50525-2-31:2011；IEC 60227
2. Voltages U0/U:
450/750V
Max. permissible continuous operating temperature of the conductor: 70
The ambient temperature under installation should not below 0.
Impedance (ohms): 100±2ohm
3. Application
The non-sheathed single core wire is used for fixed wiring
It is laid in dry, normal and light duty conditions, such as in conduit and under plaster in building.
4. Insulation Colour
Red, Black, Blue, Yellow, White, Green/Yellow, Grey, Brown

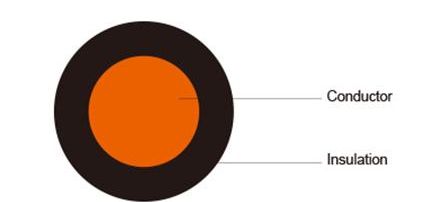

5. Specification Size and Technical Data
| Product type | Conductor structure(mm) | Insulation thickness(mm) | Sheath thickness(mm) | Approx. cable diameter(mm) | Max resistance of conductor at 20℃ (Ω/km) |
| H07V-U | 1.5 | 1/1.37 | 0.7 | 3.0±0.2 | 12.1 |
| H07V-U | 2.5 | 1/1.75 | 0.8 | 3.7±0.2 | 7.41 |
| H07V-U | 4 | 1/2.21 | 0.8 | 4.2±0.2 | 4.61 |
| H07V-U | 6 | 1/2.70 | 0.8 | 4.7±0.2 | 3.08 |

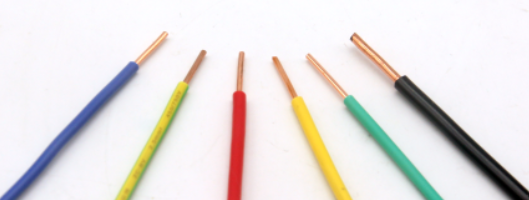

6. Product Image
7. Standards&Certificates
EN 50525-2-31:2011；IEC 60227
CCC VDE CE CB
▼ Packing&Delivery:
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
 |  |  |
| Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
▼ Company information:
30 years of experience in R & D, production and sales of wire and cable.
Invest 200 million to build a modern industrial park, covering an area of 65000 square meters.
Annual revenue is about 500 million US dollars.
CNAS laboratory, more than 100 testing reports.
Products are widely used in real estate, municipal, industrial support, mobile communications etc
▼Ordering Options:
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
|
|
450/750V Single Core Flexible Electrical Cable PVC Sheathed Solid Copper Building Wire Images
|
